SHIELDED VENT PANELS
ECS400 SERIES

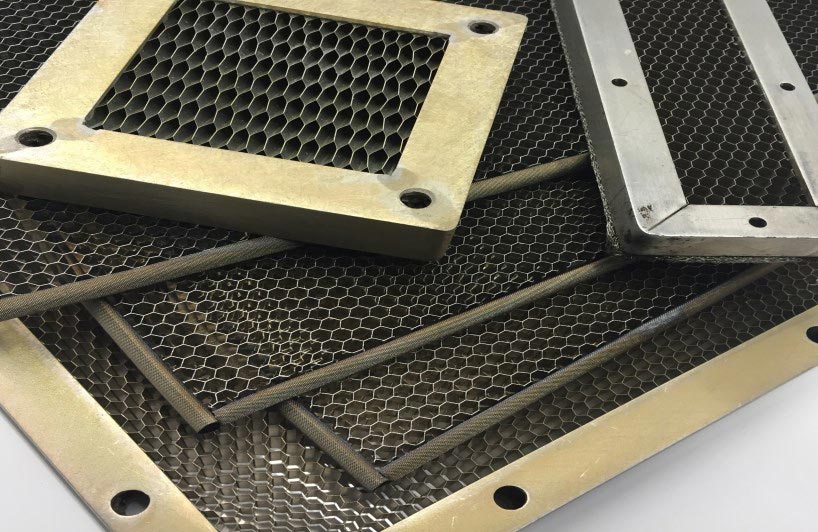

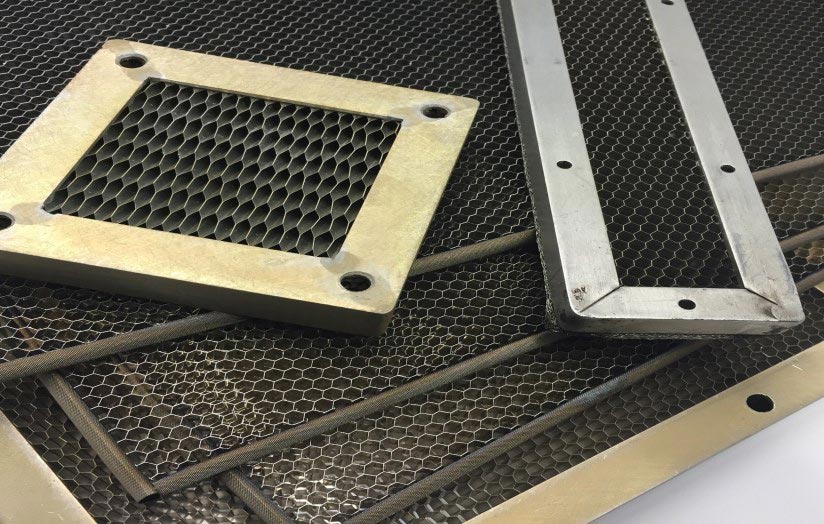

ECS400 aluminum shielded air vent panels are created from an aluminum honeycomb medium installed in an aluminum casing. The honeycomb allows for maximum levels of shielding while ensuring the least possible re-sistance to air flow.
APPLICATIONS
Recommended use for East Coast Shielding ECS 400 vents is to install into electric equipment enclosures that require high levels of EMI shielding as well as sufficient ventilation. East Coast Shielding vents can be installed necessitating on either the inlet or outlet air flows.
AVAILABLE CONFIGURATIONS

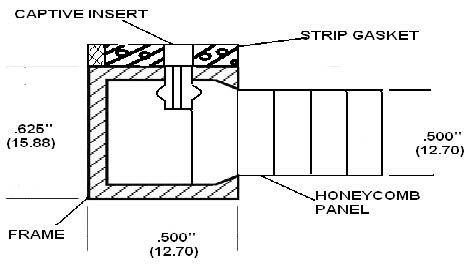

Our vents are typically assembled from 0.500” (12.70) thickness, 90-degree aluminum honeycomb with a cell size of 0.125” (3.18), but the honeycomb is also offered 0.250 (6.35) thickness and cell sizes of 0.062” (1.57) and 0.188” (4.78). Slanted cells are also available at 30, 45, and 60 degrees from the horizontal for drip proof construction. Vents with panels including captive inserts (with or without-holes) are available for mounting pur-poses. The finished construction can be chromate conversion coated or tin-plated for additional protection. East Coast Shielding vents are supplied with attached mesh, strip, or conductive silicon fabricated gaskets. For addi-
MATERIAL SPECIFICATIONS
| Frame | Aluminum alloy 6063 -T4 per QQ-A-200/8 |
| Honeycomb | MIL-C-7438 |
| Fastener | Aluminum captive insert, 8-32 UNC-3B |
| Chromate Finish | MIL-C-5541C |
| Tin-Plating | IL-T-10727 |
TYPICAL SHIELDING PERFORMANCE FOR .125 THK x .500 Thk VENT
| HONEYCOMB FINISH | H-Field 100 KHZ |
E-FIELD 10 MHZ |
PLANE WAVE 1 GHZ |
PLANE WAVE 10GHZ |
|---|---|---|---|---|
| Chemical Film | 40 dB | 75 dB | 60 dB | 40 dB |
| Tin | 70 dB | 125 dB | 100 dB | 80 dB |
| Nickel | 75 dB | 130dB | 115 Db | 100 dB |

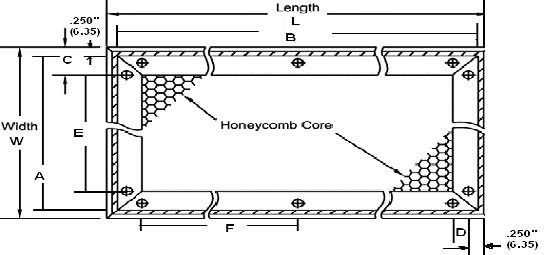

| OVERALL DIMENSIONS | EFFECTIVE AIR FLOW AREA | FRAME DIMENSIONS | HOLE SPACING | NO. FASTENERS |
Part No Std. 8.32 Fasteners | Part No Std..204 Holes | Part No No Holes Fasteners | ||||||
| SIDE (W) | SIDE (L) | SIDE W |
SIDE L |
||||||||||
| W | L | IN (CM) | A | B | C | D | E | F | |||||
| 3(76.20) | 3(76.20) | 4 ( 25.81) | 2(50.80) | 2(50.80) | 1.25(31.75) | 1.25 | 1 | 1 | ECS400- 10 | ECS400-11 | ECS400-12 | ||
| 4(101.60) | 4(101.60) | 9(58) | 3(76.20) | 3(76.20) | 1.75(44.45) | 1.75 (44.45) |
1 | 1 | ECS400- 13 | ECS400-14 | ECS400-15 | ||
| 4(101.60) | 6(152.40) | 15(97) | 3(76.20) | 5(127.00) | 1.75(44.45) | 1.00 (25.40) |
3.50(88.90) | 1 | 2 | ECS400- 16 | ECS400-17 | ECS400-18 | |
| 4(101.60) | 8(203.20) | 21(135) | 3(76.20) | 7(177.80) | 1.75(44.45) | 0.75 (19.05) |
-3.00(76.20) | 1 | 3 | ECS400- 19 | ECS400-20 | ECS400-21 | |
| 4(101.60) | 12(304.80) | 33(213) | 3(76.20) | 11(279.40) | 1.75(44.45) | 1.25 (31.75) |
3.00(76.20) | 1 | 4 | ECS400- 22 | ECS400-23 | ECS400-24 | |
| 5(127.00) | 5(127.00) | 16(103) | 4(101.60) | 4(101.60) | 2.25(57.15) | 0.75 (19.05) |
3.00(76.2014) | 1 | 2 | ECS400- 25 | ECS400-26 | ECS400-27 | |
| 5(127.00) | 7(177.80) | 24(155) | 4(101.60) | 6(152.40) | 2.25(57.15) | 1.50 (38.10) |
3.50(88.90) | 1 | 2 | ECS400- 28 | ECS400-29 | ECS400-30 | |
| 5(127.00) | 10(254.00) | 36(232) | 4(101.60) | 9(228.60) | 2.25(57.15) | 1.25 (31.75) |
3.50(88.90) | 1 | 3 | ECS400- 31 | ECS400-32 | ECS400-33 | |
| 6(152.40) | 6(152.40) | 25(161) | 5(127.00) | 5(127.00) | 1.00(25.40) | 1.00 (25.40) |
3.50(88.90) | 3.50(88.90) | 2 | 2 | ECS400- 34 | ECS400-35 | ECS400-36 |
| 6(152.40) | 8(203.20) | 35(226) | 5(127.00) | 7(177.80) | 1.25(31.75) | 0.75 (19.05) |
3.00(76.20) | 3.00(76.20) | 2 | 3 | ECS400- 37 | ECS400-38 | ECS400-39 |
| 6(152.40) | 12(304.80) | 55(355) | 5(127.00) | 11(279.40) | 1.00(25.40) | 1.25 (31.75) |
3.00(76.20) | 3.50(88.90) | 2 | 4 | ECS400- 41 | ECS400-42 | ECS400-43 |
| 6(152.40) | 18(457.20) | 85(548) | 5(127.00) | 17(431.80) | 1.00(25.40) | 1.25 (31.75) |
3.75(95.25) | 3.50(88.90) | 2 | 5 | ECS400- 44 | ECS400-45 | ECS400-46 |
| 7(177.80) | 7(177.80) | 36(232) | 6(152.40) | 6(152.40) | 1.50(38.10) | 1.50 (38.10) |
3.50(88.90) | 3.50(88.90) | 2 | 2 | ECS400- 47 | ECS400-48 | ECS400-49 |
| 7(177.80) | 10(254.00) | 54(348) | 6(152.40) | 9(228.60) | 1.50(38.10) | 1.25 (31.75) |
3.50(88.90) | 3.50(88.90) | 2 | 3 | ECS400- 50 | ECS400-51 | ECS400-52 |
| 7(177.80) | 14(355.60) | 78(503) | 6(152.40) | 13(330.20) | 1.50(38.10) | 1.50 (38.10) |
3.50(88.90) | 3.50(88.90) | 2 | 4 | ECS400- 53 | ECS400-54 | ECS400-55 |
| 8(203.20) | 8(203.20) | 49(316) | 7(177.80) | 7(177.80) | 2.00(50.80) | 0.75 (19.05) |
3.00(76.20) | 3.50(88.90) | 2 | 3 | ECS400- 56 | ECS400-57 | ECS400-58 |
| 8(203.20) | 12(304.80) | 77(497) | 7(177.80) | 11(279.40) | 0.75(19.05) | 1.25 (31.75) |
3.00(76.20) | 3.00(76.20) | 3 | 4 | ECS400- 59 | ECS400-60 | ECS400-61 |
| 8(203.20) | 16(406.40) | 105(677) | 7(177.80) | 15(381.00) | 0.75(19.05) | 1.25 (31.75) |
3.250 (82.55) | 3.00(76.20) | 3 | 5 | ECS400- 62 | ECS400-63 | ECS400-64 |
| 10(254.00) | 10(254.00) | 81 (522) | 9(228.60) | 9(228.60) | 1.25(31.75) | 1.25 (31.75) |
3.50(88.90) | 3.50(88.90) | 3 | 3 | ECS400- 65 | ECS400-66 | ECS400-67 |
| 10(254.00) | 14(355.60) | 117(755) | 9(228.60) | 13(330.20) | 1.25(31.75) | 1.50 (38.10) |
3.50(88.90) | 3.50(88.90) | 3 | 4 | ECS400- 68 | ECS400-69 | ECS400-70 |
| 10(254.00) | 18(457.20) | 153(987) | 9(228.60) | 17(431.80) | 1.25(31.75) | 1.25 (31.75) |
3.75(95.25) | 3.50(88.90) | 3 | 5 | ECS400- 71 | ECS400-72 | ECS400-73 |
| 12(304.80) | 12(304.80) | 121(780) | 11(279.40) | 11(279.40) | 1.25(31.75) | 1.25 (31.75) |
3.00(76.20) | 3.00(76.20) | 4 | 4 | ECS400- 74 | ECS400-75 | ECS400-76 |
| 12(304.80) | 16(406.40) | 165(1064) | 11(279.40) | 15(381.00) | 1.25(31.75) | 1.25 (31.75) |
3.25(82.55) | 3..00(76.20) | 4 | 5 | ECS400- 77 | ECS400-78 | ECS400-79 |
| 12(304.80) | 20(508.00) | 209(1348) | 11(279.40) | 19(482.60) | 1.25(31.75) | 1.00 (25.40) |
3.50(88.90) | 3.00(76.20) | 4 | 6 | ECS400- 80 | ECS400-81 | ECS400-82 |
| 12(304.80) | 24(609.60) | 253(1632) | 11(279.40) | 23(584.20) | 1.25(31.75) | 1.25 (31.75) |
3.50(88.90) | 3.00(76.20) | 4 | 7 | ECS6400- 83 | ECS400-84 | ECS400-85 |
